Introduction
At ResolveMass Laboratories Inc., we use advanced LCMS Profiling for Reverse Engineering to uncover hidden ingredients inside complex chemical formulations. In this case study, we applied this technique to an industrial lubricant sample to identify unknown chemical components and understand how each compound supports overall product behavior. By combining LC and MS data, we achieved a complete molecular map that supports formulation replication, quality benchmarking, and future R&D work.
This expanded assessment also included a review of impurity patterns, molecular interactions, and how minor additives contribute to stability and long-term performance. With these insights, manufacturers gain a clearer path to refining or recreating formulations while staying aligned with industry standards.
Summary of Key Findings
- ✅ LCMS profiling successfully identified multiple chemical constituents in the lubricant.
- ✅ Major compounds included Triethanolamine (TEA), Polyethylene Glycol (PEG) derivatives, Triethanolamine Oleate, and Oleic Acid.
- ✅ Unknown polymeric additives were detected at retention times between 15.29–18.28 min.
- ✅ Mass spectral data revealed strong m/z signals confirming component identities.
- ✅ LCMS and UV chromatograms provided high-resolution evidence of the mixture’s complexity.
Understanding LCMS Profiling for Reverse Engineering
LCMS Profiling for Reverse Engineering is a modern analytical method that uses Liquid Chromatography (LC) and Mass Spectrometry (MS) to separate, detect, and identify individual molecules inside a complex mixture. This approach is especially valuable when product ingredients are unknown, proprietary, or only partially disclosed. With its high sensitivity and accuracy, LCMS helps decode multi-layered formulations and reveals relationships between compounds that influence real-world performance.
This method is widely used in industries such as lubricants, coatings, cosmetics, and pharmaceuticals because it can easily detect trace additives, surfactants, and even heavy polymeric structures. At ResolveMass Laboratories, we also integrate AI-assisted spectral matching and large scientific libraries to improve identification confidence. This helps researchers track impurities, compare competitor products, and verify formulation changes with greater precision.
LCMS Profiling for Reverse Engineering Helps Industries To:
- Deconvolute multi-component formulations
- Detect trace surfactants and minor additives
- Compare competitor materials with accurate molecular data
- Support R&D reporting, regulatory work, and quality benchmarking
Our combined approach shortens analysis time and increases accuracy, making the method ideal for reverse engineering projects across many chemical sectors.
Learn how LCMS impurity profiling can enhance your formulation insights, explore our full analysis here – Impurity profiling using LCMS
Case Study: LCMS Profiling of an Industrial Lubricant
Objective
The lubricant sample was examined to identify all chemical components using LCMS Profiling for Reverse Engineering. The main goal was to develop a complete molecular fingerprint of the product for formulation benchmarking and quality evaluation. Special focus was given to locating both common and proprietary additives, including minor compounds that may play an important role in long-term performance. By documenting these elements, manufacturers can gain deeper insights for product improvement and comparison studies.
Experimental Approach
Instrument: LCMS
Sample: Industrial lubricant (liquid)
Mode: ESI Positive ion detection
These settings were selected to ensure strong ionization of amine-based compounds, fatty acids, and polymeric materials. The LCMS system allowed accurate mass detection across a wide m/z range, improving the reliability of each detected component. Positive ion mode also increased sensitivity for surfactants and PEG-based materials. Together, these conditions ensured a dependable and high-clarity analytical profile.
LCMS Profiling Results and Discussion
| Retention Time (RT) | m/z Ions | Probable Compound | Interpretation |
|---|---|---|---|
| 12.77, 13.85, 14.01, 14.21 | 150.96 | Triethanolamine (TEA) | Major emulsifier; strong and repeated signal confirms presence |
| 10.09 | 132.95–309.00 | Low MW PEG | Surfactant components; repeating ethylene oxide units |
| 22.71 | 132.94–336.96 | High MW PEG | Viscosity modifier with longer chain length |
| 14.01 | 435.14 | Triethanolamine Oleate | Reaction product of TEA and Oleic Acid |
| 12.77, 14.21 | 289.05 | Oleic Acid | Fatty acid contributing to lubrication behavior |
| 15.29–18.28 | 550.37–557.27 | Polymeric Additive | Indicates proprietary polymer or stabilizer |

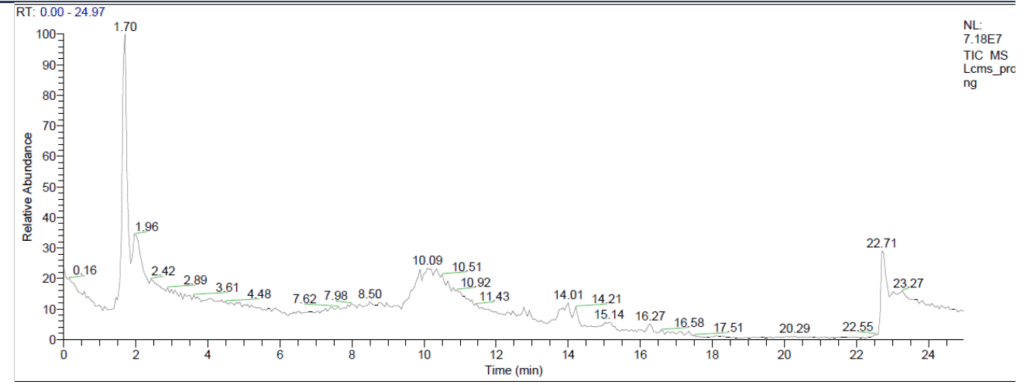

LCMS Chromatogram and Spectra

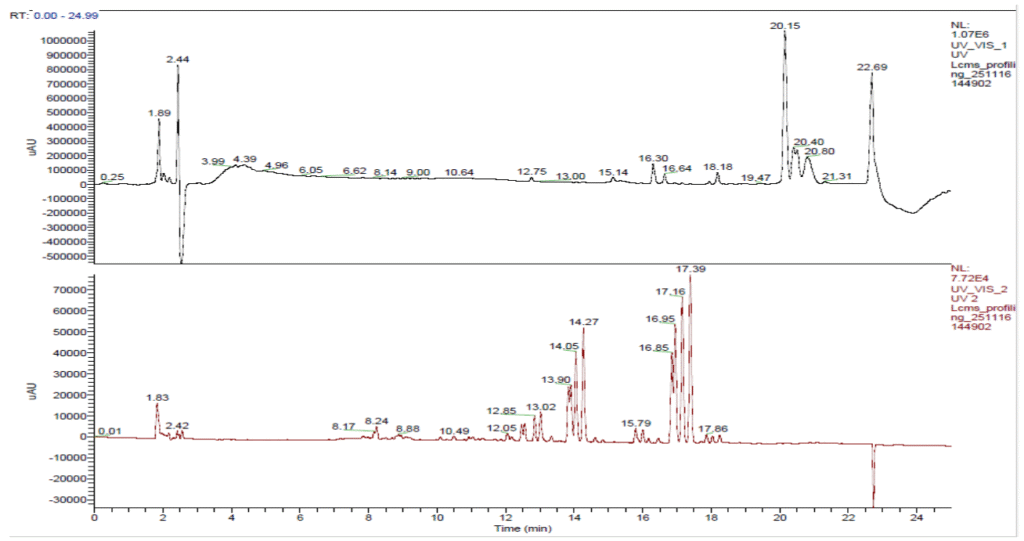

UV Chromatogram
Identification of Triethanolamine (TEA)
Using LCMS Profiling for Reverse Engineering, a strong ion at m/z 150.96 appeared across several retention times. This matched Triethanolamine (TEA), a crucial emulsifier and pH-buffering agent commonly used in industrial lubricants. Its repeated presence indicates that TEA interacts with multiple formulation components and plays a central role in stabilizing the mixture.
The distribution of these peaks also suggests TEA’s involvement in forming balanced emulsifier systems. Its stability under ionization supports accurate confirmation, aligning well with industrial lubricant design focused on consistent dispersibility and controlled pH levels.
Detection of Polyethylene Glycol (PEG) Derivatives
Repeating mass gaps of 44.02 Da confirmed the presence of Polyethylene Glycol (PEG) chains. Lower-molecular-weight PEGs (RT 10.09) act as surfactants, while higher-molecular PEGs (RT 22.71) serve as viscosity modifiers. This balanced distribution of chain lengths indicates a formulation designed for smooth flow, stable film formation, and versatile performance.
PEG derivatives also support solvency, lubrication, and compatibility between oil and water phases. Their chain variations can significantly influence operational behavior, such as shear stability and resistance to breakdown. These findings help explain the lubricant’s overall performance profile.
Identification of Triethanolamine Oleate
At RT 14.01, an ion at m/z 435.14 matched Triethanolamine Oleate, a reaction product formed between TEA and Oleic Acid. This compound acts as a stabilizing emulsifier that improves lubricant dispersibility and uniformity. Its presence indicates purposeful formulation design aimed at enhancing stability under wide temperature and mechanical conditions.
The detection of this molecule shows natural interactions happening inside the mixture and confirms that the formulation includes soap-like structures essential for stabilizing emulsions.
Detection of Fatty Acid Components
Signals at RT 12.77 and 14.21, along with m/z 289.05, represent Oleic Acid or closely related fatty acid derivatives. These compounds play a major role in lubrication efficiency by forming boundary films on metal surfaces. They also support corrosion protection and reduce friction during operation.
Identifying these fatty acids helps explain the lubricant’s strong film formation and anti-wear behavior. Their role is essential for extending equipment life and improving overall product reliability.
Unknown Polymeric Additives
Peaks between 15.29–18.28 minutes, with m/z values between 550–557, suggest the presence of polymeric additives used as stabilizers, antioxidants, or performance modifiers. These types of additives are often proprietary and play a key part in giving commercial lubricants their unique performance characteristics.
The broad peak shape and high mass values indicate controlled polymerization. Finding these components is especially valuable when reverse engineering complex blends or evaluating premium-grade products.
LCMS and UV Chromatogram Insights
The LCMS and UV chromatograms showed clear, sharp, and reproducible peaks that matched identified compounds. UV signatures also supported the presence of chromophoric groups linked to fatty acids and amines. The separation achieved in the chromatograms minimized overlap, ensuring reliable identification even for similar structures.
These combined insights gave a full and dependable analytical picture, which is essential for accurate reverse engineering and formulation documentation.
Why LCMS Profiling is Ideal for Reverse Engineering Lubricants
LCMS Profiling for Reverse Engineering is one of the most reliable techniques for analyzing complex lubricant formulations because it offers exceptional sensitivity and supports detailed compound identification. It can detect even extremely small quantities of surfactants, emulsifiers, polymers, and other additives that traditional testing methods often miss. This helps manufacturers evaluate quality, identify competitor strategies, and improve their own product designs.
LCMS also allows fast comparison between different batches to detect formulation drift or changes in raw material quality. Its ability to generate accurate molecular fingerprints makes it an essential tool for modern R&D and performance benchmarking across industrial markets.
Key Advantages of LCMS Profiling
- High sensitivity capable of detecting trace-level additives
- Comprehensive profiling of surfactants, emulsifiers, fatty acids, and polymers
- AI-assisted compound matching for faster identification
- Non-destructive testing that preserves sample integrity
- Useful across many industries including lubricants, coatings, detergents, and cosmetics
These strengths make LCMS one of the most dependable analytical tools for companies aiming to replicate, refine, or improve complex chemical systems.
Summary Table of Detected Compounds
| Component | Function in Lubricant | Evidence (m/z) |
|---|---|---|
| Triethanolamine (TEA) | Emulsifier / pH buffer | 150.96 |
| Low MW PEG | Surfactant | 132.95–309.00 |
| High MW PEG | Viscosity modifier | 132.94–336.96 |
| Triethanolamine Oleate | Emulsion stabilizer | 435.14 |
| Oleic Acid | Lubricity agent | 289.05 |
| Polymeric Additive | Performance enhancer | 550–557 |
Conclusion
This LCMS Profiling for Reverse Engineering study on the industrial lubricant provided a detailed molecular breakdown of both known and previously unknown components. The analysis successfully identified major emulsifiers, PEG derivatives, fatty acids, and proprietary polymeric additives that influence overall product stability and performance. With this high-resolution insight, ResolveMass Laboratories Inc. can support industries in formulation benchmarking, quality improvement, and competitive analysis.
These findings also help manufacturers refine their formulations, increase product reliability, and maintain consistent quality across multiple production batches. LCMS continues to be one of the most powerful tools for decoding and understanding complex chemical formulations in today’s industrial landscape.
To discuss your formulation testing or schedule a custom LCMS profiling study, visit our Contact Page.
FAQs on LCMS Profiling for Reverse Engineering
It is an analytical method that uses liquid chromatography and mass spectrometry to break down complex mixtures and identify unknown ingredients. The technique delivers molecular weight data, structural clues, and component relationships that help industries understand how a formulation is built.
LCMS can detect a wide variety of compounds, from small surfactants to large polymers, making it ideal for lubricant evaluation. It offers high sensitivity, fast results, and accurate identification of both major and trace components within a formulation.
Yes. LCMS can identify high-mass polymeric additives, as seen with peaks around m/z 550–557 in this study. These additives often play key roles in stability, anti-wear behavior, and long-term performance.
Accuracy is based on precise mass-to-charge measurements and AI-supported spectral matching. This ensures reliable, research-grade compound identification. Reference standards may be used for further confirmation when needed.
LCMS is used for reverse engineering, quality testing, raw material verification, and R&D development. It helps companies validate formulations, compare competitive products, and maintain consistent performance.
Lubricants can contain overlapping peaks and complex matrices that require specialized interpretation. Access to extensive compound libraries and advanced AI tools greatly improves accuracy and reduces the risk of misidentification.
AI accelerates spectral matching, improves peak interpretation, and increases confidence in identifying unknown components. It reduces manual workload and helps deliver quicker and more accurate reports.
References
- Deshpande, M. M., Bhalerao, M. H., & Pabale, P. D. (2022). A review on impurity profiling, degradation studies, and bioanalytical methods of anti-diabetic drugs. Journal of Pharmaceutical Research International, 34(34B), 43–71. https://doi.org/10.9734/jpri/2022/v34i34B36156
- Bhoi, A. B., Dalwadi, M., & Upadhyay, U. M. (2020). Impurity profiling of pharmaceuticals. International Journal of Pharmaceutical Research and Applications, 5(2), 477–491. https://doi.org/10.35629/7781-0502477491
- Bhagwat, A. B., & Khedkar, K. M. (2022). Impurity profiling: A review. Asian Journal of Pharmaceutical Research and Development, 10(2), 135–143. http://dx.doi.org/10.22270/ajprd.v10i2.1052
